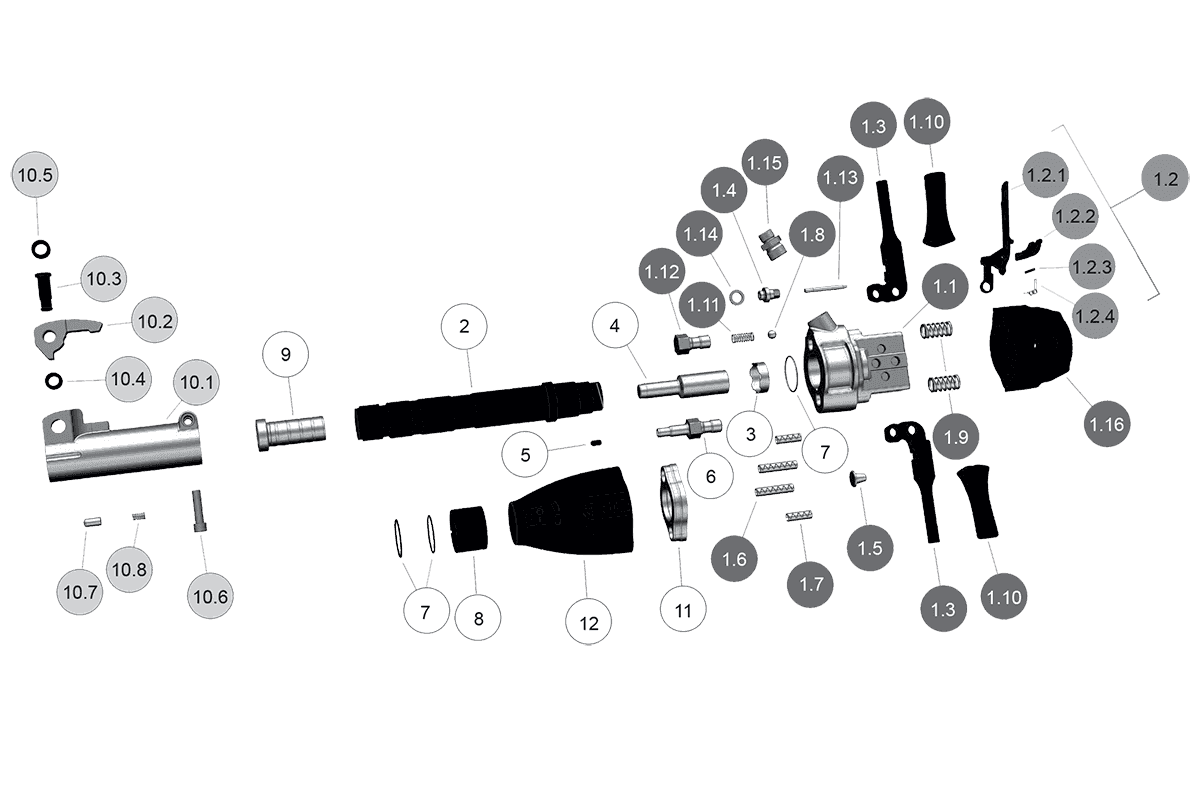

Position |
Benennung |
Denomination |
Artikelnummer |
Abbildung |
1 |
Griffkörper komplett |
Handle body complete |
21949 |
|
1.1 |
Griffkörper |
Handle body |
21947 |
|
1.2 |
Hebel |
Lever |
71237 |
|
1.3 |
Drücker |
Trigger |
72167 |
|
1.4 |
Bolzen |
Bolt |
71383 |
|
1.5 |
Bolzen |
Bolt |
71382 |
|
1.6 |
Connex-Spannstift |
Connex-Dowel |
71291 |
|
1.7 |
Connex-Spannstift |
Connex-Dowel |
71288 |
|
1.8 |
Kugel |
Valve ball |
76052 |
|
1.9 |
Dämpfungsfeder |
Damper spring |
72189 |
|
1.10 |
Griffhülle |
Rubber grip |
71238 |
|
1.11 |
Druckfeder |
Pressure spring |
72779 |
|
1.12 |
Schraube |
Screw |
67895 |
|
1.13 |
Ventilstift |
Valve pin |
67880 |
|
1.14 |
Ring |
ring |
68843 |
|
1.15 |
Siebträger komplett |
Strainer socket complete |
76137 |
|
1.16 |
Griffkörperhülle |
Handle body casing |
71380 |
|
2 |
Zylinder |
Cylinder |
21946 |
|
3 |
Steuerring |
Control ring |
21948 |
|
4 |
Kolben |
Piston |
21446 |
|
5 |
Stift |
Pin |
67883 |
|
6 |
Schraube für Rückhub |
Screw for back stroke |
67885 |
|
7 |
O-Ring |
O-ring |
72229 |
|
8 |
Distanzring S28x152. S28x160 |
Distance ring S28x152. S28x160 |
72146 |
|
9 |
Meisselbüchse S26x108 |
Chisel bush S26x108 |
21447 |
|
9 |
Meisselbüchse S28x152 |
Chisel bush S28x152 |
21630 |
|
9 |
Meisselbüchse S28x160 |
Chisel bush S28x160 |
21453 |
|
10 |
Riegelhaltekappe komplett S26x108 |
Latch retainer cap complete S26x108 |
21476 |
|
10.1 |
Riegelhaltekappe S26x108 |
Latch retainer cap S26x108 |
21442 |
|
10 |
Riegelhaltekappe komplett S28 |
Latch retainer cap complete S28 |
21492 |
|
10.1 |
Riegelhaltekappe S28 |
Latch retainer cap S28 |
21491 |
|
10.2 |
Riegel |
Latch |
76732 |
|
10.3 |
Bolzen |
Bolt |
72149 |
|
10.4 |
Dämpfungsring klein |
Ring small |
72190 |
|
10.5 |
Dämpfungsring groß |
Ring large |
72164 |
|
10.6 |
Zylinderschraube |
Cylinder Screw |
72251 |
|
10.7 |
Druckbolzen |
Pressure bolt |
72850 |
|
10.8 |
Druckfeder |
pressure spring |
72421 |
|
11 |
Flansch |
Flange |
67884 |
|
12 |
Schalldämpfermantel |
Silencer coat |
72178 |
|
1 |
Griffkörper komplett |
Handle body complete |
22231 |
|

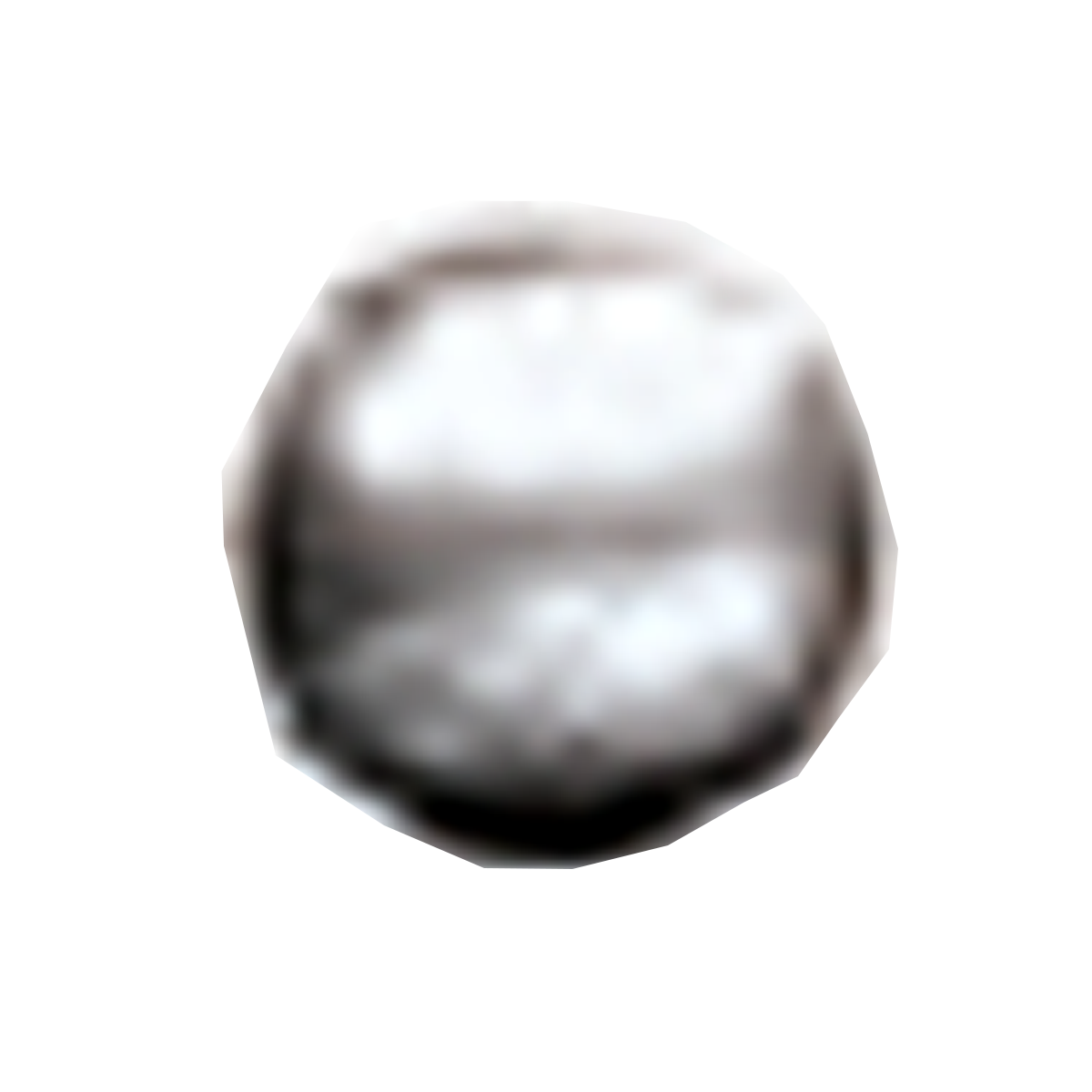

1.16 |
Griffkörperhülle ATEX |
Handle body casing ATEX |
69774 |
|
12 |
Schalldämpfer ATEX |
Silencer ATEX |
69775 |
|
